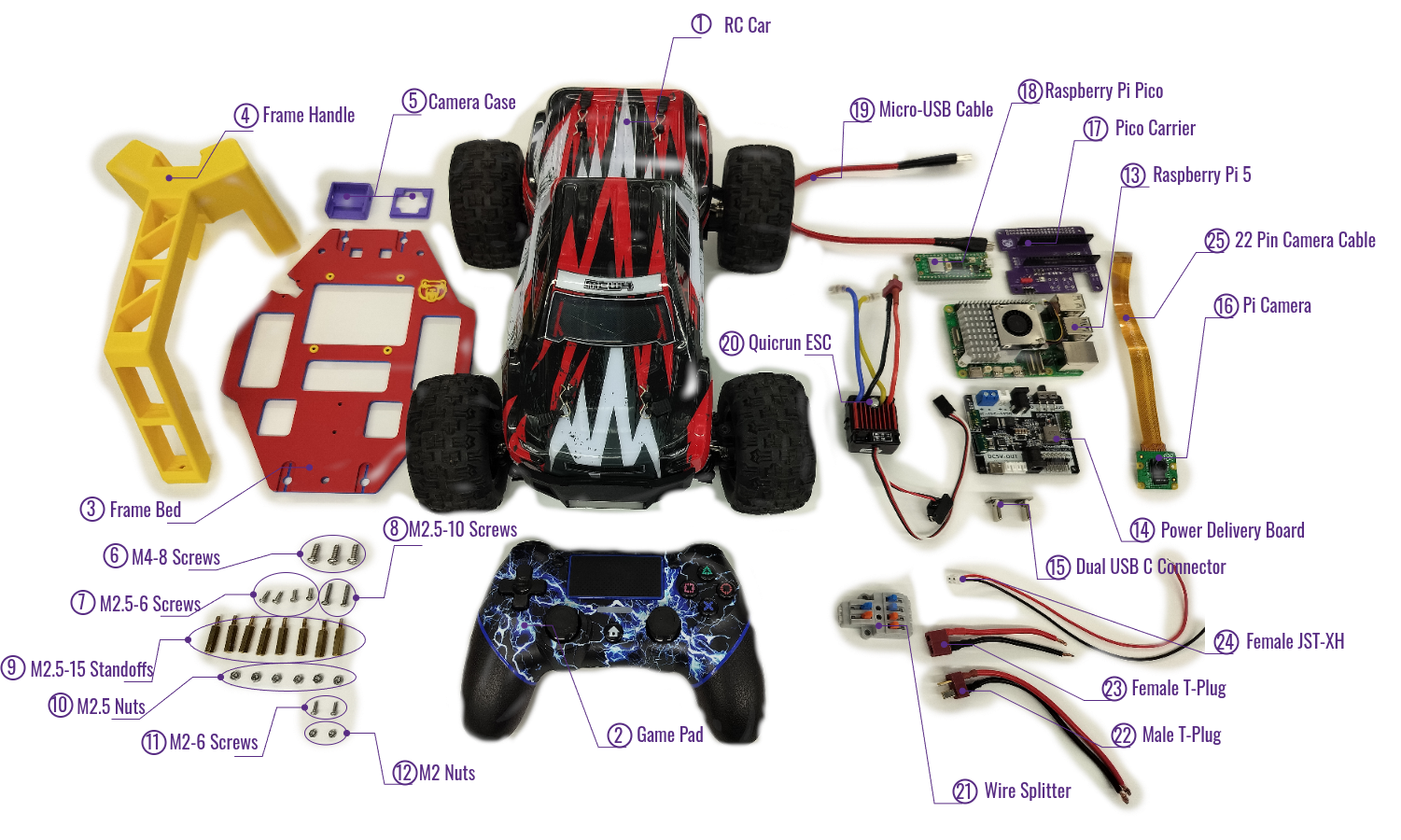

| 1 |
RC Car |
1 |
1:16, with brushed motor |
https://a.co/d/91ZDgie |
| 2 |
Game Pad |
1 |
Wired/Wireless, XBox/PS/generic |
https://a.co/d/iRLK60r |
| 3 |
Frame Bed |
1 |
3D printable |
https://github.com/UCAEngineeringPhysics/bearcar_me |
| 4 |
Frame Handle |
1 |
3D printable |
https://github.com/UCAEngineeringPhysics/bearcar_me |
| 5 |
Camera Case |
1 |
3D printable |
https://www.printables.com/model/17917-raspberry-pi-camera-v2-3030-2020-mount |
| 6 |
M4-8 Screw |
3 |
Secure frame handle on bed |
|
| 7 |
M2.5-6 Screw |
4 |
Secure Pico carrier board |
|
| 8 |
M2.5-10 Screw |
2 |
Secure wire splitter |
|
| 9 |
M2.5-15 Standoff |
8 |
Support RPi5 and Pico carrier board |
|
| 10 |
M2.5 Nut |
6 |
Secure boards and wire splitter |
|
| 11 |
M2 Screw |
2 |
Secure ESC switch |
|
| 12 |
M2 Nut |
2 |
Secure ESC switch |
|
| 13 |
Raspberry Pi 5 |
1 |
Brain of the robot, 2.4GHz quad-core CPU |
https://www.pishop.us/product/raspberry-pi-5-4gb/ |
| 14 |
RPi5 Power Expansion Board |
1 |
Delivers 5V5A via PD protocol |
https://category.yahboom.net/collections/a-power/products/power-board-pi5 |
| 15 |
Dual USB-C Connector Board |
1 |
Delivers power from power expansion board to RPi5 |
https://category.yahboom.net/collections/a-power/products/power-board-pi5 |
| 16 |
Raspberry Pi Camera |
1 |
Eye of the robot, 11.9 MP |
https://www.pishop.us/product/raspberry-pi-camera-module-3/ |
| 17 |
Pico Carrier Board |
1 |
Interface for Pico |
https://github.com/UCAEngineeringPhysics/bearcar_ee |
| 18 |
Raspberry Pi Pico 2W |
1 |
Cerebellum of the robot, RP2350 microcontroller |
https://www.pishop.us/product/raspberry-pi-pico-2w-with-header/ |
| 19 |
Micro-USB Cable |
1 |
Transfer data between Pico and RPi5 |
|
| 20 |
Quicrun 1060 brushed ESC |
1 |
Motor speed regulator, provides power to steering servo |
https://a.co/d/9Cwsu1n |
| 21 |
Wire Splitter |
1 |
Split input battery power to feed ESC and computers |
https://a.co/d/1j4jFMG |
| 22 |
Wired Male T-Plug Connector |
1 |
Splitter input, 16 AWG wire, length >= 65 mm |
https://a.co/d/3CwSQNg |
| 23 |
Wired Female T-Plug Connector |
1 |
Splitter output to ESC, 16 AWG wire, length >= 50 mm |
https://a.co/d/3CwSQNg |
| 24 |
Wired JST-XH connector |
1 |
Splitter output to power expansion board |
https://a.co/d/eqwb7Dw |
| 25 |
Pi Camera Cable |
1 |
22-Pin to 15-pin |
https://a.co/d/0rL2ziT |
